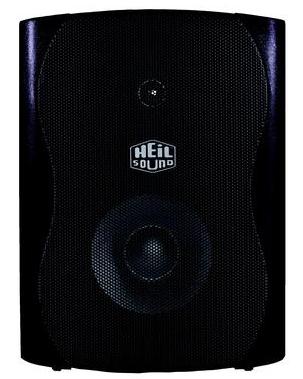

The HPS-5 consists of a 24-watt, two-way, low-distortion amplifier using a titanium midrange
tweeter and a 5" low-frequency speaker. The HPS-5, in combination with the Heil PRAS EQ, provides superb audio
balance without distortion.
The HPS-5 has a low-distortion, highly efficient Class D 24-watt amplifier that drives a specially designed
5" low-frequency speaker with a 3" magnet assembly mounted in a resonant sealed enclosure. A passive extended
crossover drives a 2" high-frequency tweeter.

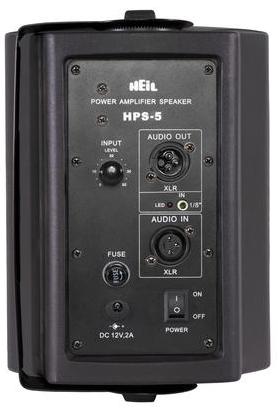

The HPS-5 has two rear panel inputs: a balanced 600 ohm XLR input and an unbalanced 1/8" input. A single
level control adjusts the input signals for both inputs. There is also a balanced 600 ohm XLR output for
combining two or more HPS-5 powered speakers. Requires 12VDC, comes with 6FT power adapter cable, 2.5mm barrel
connector (speaker side) to Anderson power pole connectors. Dimensions are 9" H x 7" W x 6" D.
|
