 Heil Parametric Receive Unit




 The Heil Parametric Receive Audio Unit (PRAS EQ) is a state-of-the-art audio unit that enhances the internal audio systems of amateur radio, shortwave, commercial, and CB receivers. The PRAS allows radio operators to modify, shape, and improve the audio output of their receivers using three separate equalization controls.

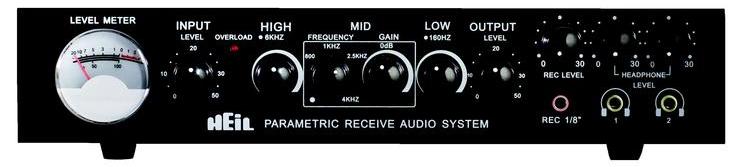

 Midrange frequencies are the most critical for achieving clear voice articulation in receive audio. The Parametric Receive Audio Unit allows operators to have unique control over these important frequencies. First, operators can adjust the parametric midrange filter from 400 Hz through 4 kHz, with the recommended sweet spot being at 2.5 kHz. In addition, operators can control the presence of these midrange frequencies plus or minus 15 dB. Combined with a low-frequency filter down to 160 Hz, and a high-frequency filter up to 6 kHz, the Parametric Receive Unit provides operators unparalleled control and quality of their receive audio.

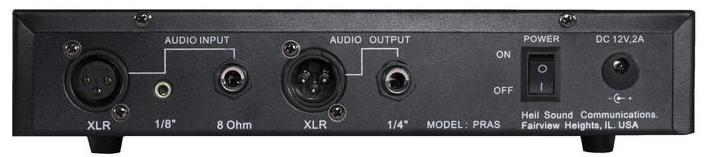

 The PRAS has three audio inputs: standard XLR and 1/8" inputs, and an 8 ohm input that can be used with the 8 ohm speaker output of any receiver.

 There are three audio outputs on the PRAS: balanced XLR and 1/4" outputs on the rear panel, and a 1/8" output on the front panel for recording audio. The PRAS also has two built-in headphone amplifiers with separate level controls and dual 1/8" headphone outputs.

 The PRAS is best when used with the Heil HPS-5 powered speaker (the PRAS must be used with a powered speaker). But can be used with the speaker of your choice.

Requires 12VDC, comes with 6FT power adapter cable, 2.5mm barrel connector (PRAS side) to Anderson power pole connectors.

Instruction Manual




Bob Heil Walks you through the Parametric Receive Audio Unit

Demonstration of the Parametric Receive Audio Unit

How to set up the Heil Parametric Receive Audio Unit

Parametric Receive Audio Unit
Part Number Desc Price Cont. USA Export
PRAS EQ Heil Parametric Receive Audio Unit
Instruction Manual

FREE shipping to cont. USA
In Stock

$229.00

HPS-5 Heil Powered Speaker

FREE shipping to cont. USA
In Stock

$189.00





 The HPS-5 consists of a 24-watt, two-way, low-distortion amplifier using a titanium midrange tweeter and a 5" low-frequency speaker. The HPS-5, in combination with the Heil PRAS EQ, provides superb audio balance without distortion.

 The HPS-5 has a low-distortion, highly efficient Class D 24-watt amplifier that drives a specially designed 5" low-frequency speaker with a 3" magnet assembly mounted in a resonant sealed enclosure. A passive extended crossover drives a 2" high-frequency tweeter.

 The HPS-5 has two rear panel inputs: a balanced 600 ohm XLR input and an unbalanced 1/8" input. A single level control adjusts the input signals for both inputs. There is also a balanced 600 ohm XLR output for combining two or more HPS-5 powered speakers. Included with the HPS-5 is a 12 volt, 2 amp power supply, and a 2 amp fuse is mounted on the rear panel. Dimensions are 9" H x 7" W x 6" D.
